Plotter & Vinyl Roll Converting Lines

Solutions · Plotter & Vinyl Rolls

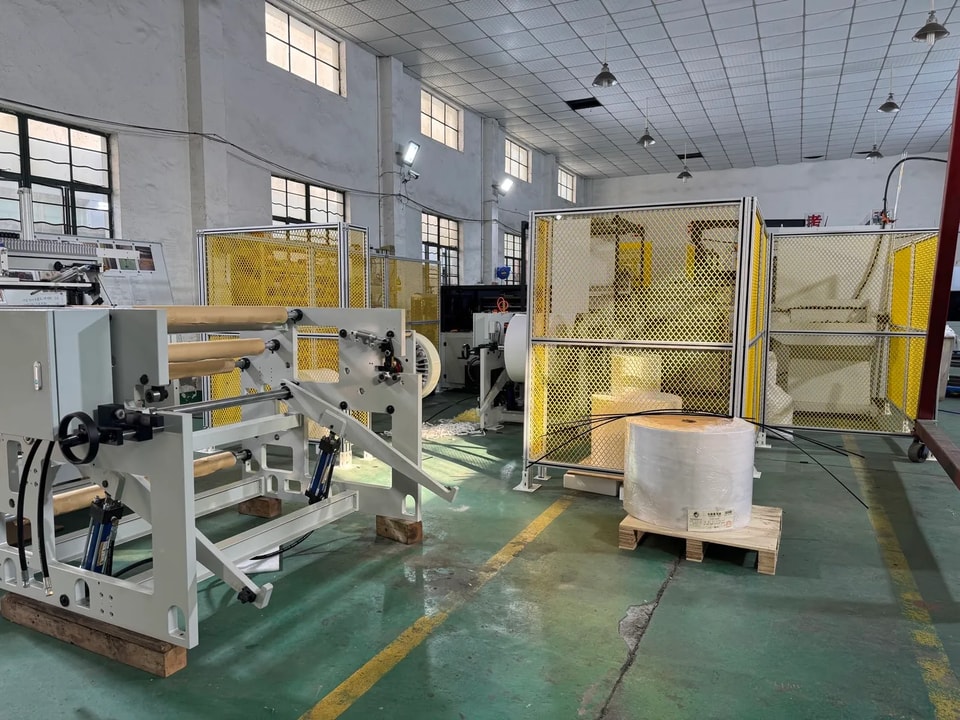

Plotter & Vinyl Roll Converting Lines

Automatic slitting, rewinding and packaging for engineering drawing paper, garment pattern paper and vinyl rolls, with core and coreless rolls finished on the same line.

Request a QuoteWhat to send us

Applications

Wide-Format Rolls, Fully Automated

With growing global demand for drawing paper rolls and vinyl rolls, converters need fully automated slitting equipment. GPPE plotter roll lines automate slitting, rewinding and packaging at up to 500 m/min without operators standing at every step.

  • Engineering & CAD plotter paper
  • Garment pattern-making paper
  • Vinyl rolls
500m/min max. rewinding speed
80%Less labor with a fully automated line
1 : 3One worker can handle 3 machines
2 in 1Core and coreless rolls on one line

Lines & Specifications

Two Mother Roll Width Ranges

ParameterWide VersionStandard Version
Mother roll width1100–2000 mm800–1500 mm
Max. mother roll diameter1200 mm1200 mm
Max. finished roll diameter250 mm250 mm
Core ID25–50 mm25–50 mm
Material thickness40–200 gsm40–200 gsm
Max. rewinding speed500 m/min500 m/min

Specifications are from GPPE standard configurations. Final configuration depends on your material and finished roll requirements.

Models & Configuration

Models on Sale and How to Choose

Fully automatic printing, slitting and packaging lines for plotter rolls.

ModelAutomationOperatorsMother rollMaterialEfficiency
GP-FAL1100-WPFully automaticNo dedicated operatorW1100 mm, OD 1270 mm40–200 gsm35 s/cycle (100 m)
GP-FAL1500-WPFully automaticNo dedicated operatorW1500 mm, OD 1270 mm40–200 gsm35 s/cycle (100 m)
GP-FAL2000-WPFully automaticNo dedicated operatorW2000 mm, OD 1270 mm40–200 gsm35 s/cycle (100 m)

Standard functions

  • Unwinding
  • Slitting
  • Rewinding
  • Cutting
  • Tail sealing
  • Core conveying
  • Core shaft conveying
  • Label tail closure
  • Roll separation and end flattening
  • Roll pushing and counting
  • Conveying
  • Packaging

Optional functions

  • Printing
  • Drying
  • Waste removal and baling
  • Web guiding
  • Accumulator
  • Shaftless unwinding
  • Servo tension control
  • Carton erecting and packing
  • Carton sealing
  • Palletizing
Customers
Paper and film slitting and rewinding plants
Applications
Printing, slitting, converting and packaging of digital printing and plotter paper products

How to choose your line

Answer these questions in your inquiry and our engineers will recommend a model and configuration.

  1. Tell us more about your company's products and services.
  2. Which machine width do you prefer for production: 1100 mm, 1500 mm or 2000 mm?
  3. How many tons of rolls do you plan to convert per month on the new machine?
  4. Packaging style: POF transparent or black PE?
  5. Flexo printing: 1 color, 2 colors or more (max. 6 colors inline)?

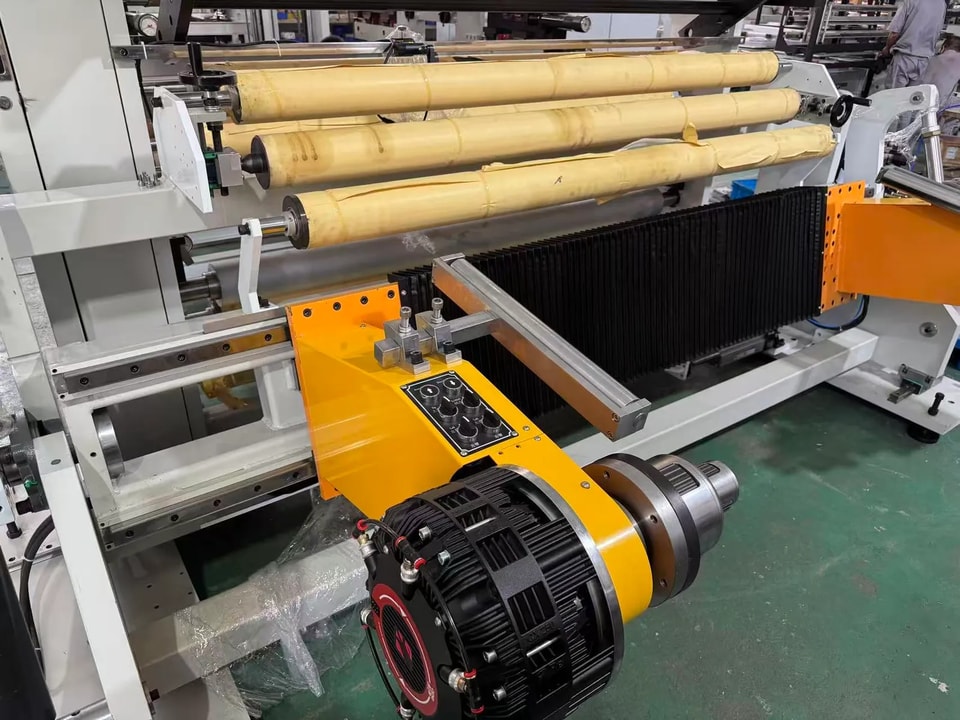

Unwinding unit of a GPPE converting line

Line Benefits

Built for Continuous Production

  • High speedRewinding speed up to 500 m/min.
  • Fully automated lineLabor reduced by 80% and efficiency increased by 100%.
  • One worker, three machinesAutomation lets a single operator supervise multiple lines.
  • Core and corelessBoth roll types can be finished on one line.

Request a Quote

Plan Your Plotter Roll Line

Send us the details below and our engineers will recommend a line configuration for your products and output.

Request a QuoteContact Us
  • Product: drawing paper, pattern paper or vinyl
  • Material and gsm
  • Mother roll width and diameter
  • Finished roll width, length and diameter
  • Core ID or coreless
  • Target daily output
  • Packaging method
  • Destination country and power supply
