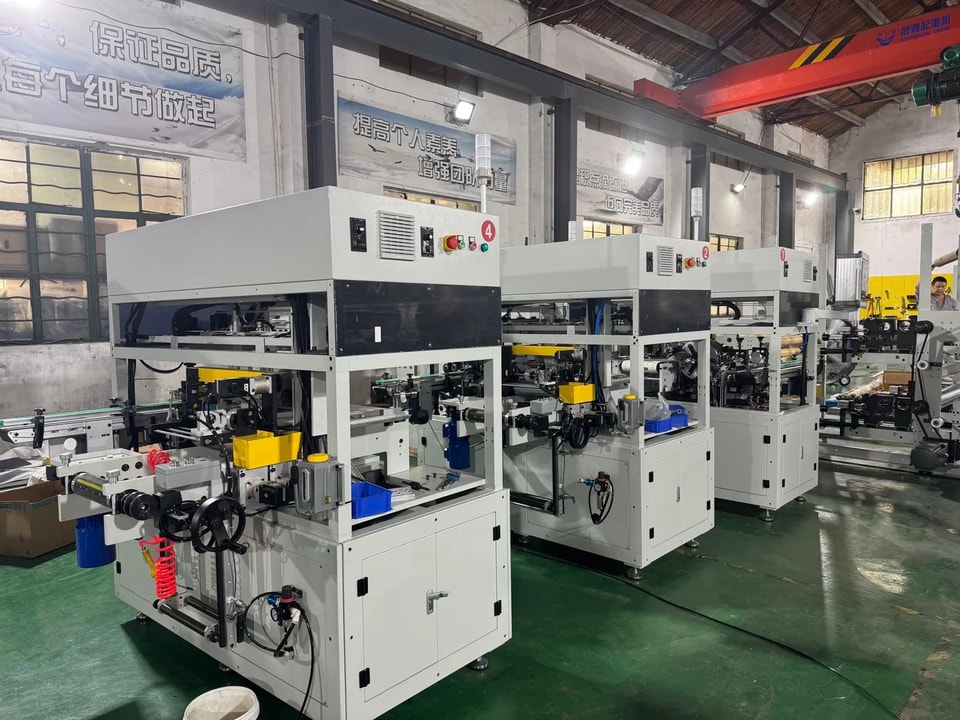

POS & Thermal Paper Roll Converting Lines

Solutions · POS & Thermal Paper Rolls

POS & Thermal Paper Roll Converting Lines

Fully automatic lines for factories producing cash register (till), POS and ATM thermal rolls: printing, slitting, winding, tail closure, grouping and shrink packaging in one line.

Request a QuoteWhat to send us

Roll Types

One Solution Family for Three Kinds of Thermal Rolls

For converters supplying receipt rolls to supermarkets, retail chains, logistics companies and local delivery businesses.

01

Standard Core Rolls

POS and ATM receipt rolls on cores with ID 12–25.4 mm and finished OD 30–200 mm.

02

Preprinted Rolls

Inline flexo printing on the back (back printing) or face of the roll with printing registration accuracy of ±0.2 mm.

03

Coreless Rolls

8–15 mm coreless rolls with longer length per roll and no core waste. Core rolls can be produced on the same line.

Lines & Specifications

Compare GPPE POS Roll Lines

ParameterHigh-Speed Line
GP-FA1500-WP		Preprinted Line
GP-FA1100-WP-2C		Coreless Line
GPPE-Rollmaster
Web width650 / 1100 / 1500 mmUp to 1100 mm650 / 1100 mm
Paper weight40–120 gsm40–120 gsm40–100 gsm
Slitting widthMin. 30 mmMin. 30 mmMin. 30 mm
Finished roll OD30–200 mm30–200 mm30–200 mm
Core ID12–25.4 mm12–25.4 mm8–15 mm (coreless)
Printing length12–26 inch12–26 inch12–26 inch
Cycle time25 s/cycle (60 m rolls)28 s/cycle (60 m rolls)25 s/cycle (60 m rolls)
Packaging speedMax. 15 packs/minMax. 15 packs/minMax. 15 packs/min
Rewinding speedMax. 500 m/minMax. 300 m/minMax. 300 m/min
Jumbo rollOD 1270 mm, up to 2 tOD 1270 mm, up to 2 t—
Printing registration—±0.2 mm—
Operators1 operator for up to 3 lines1 operator for 2 lines1 operator for 3 machines

Specifications are from GPPE standard configurations. Final configuration depends on your material and finished roll requirements.

Models & Configuration

Models on Sale and How to Choose

Fully automatic slitting and converting equipment for thermal cash register (POS) paper rolls.

ModelAutomationOperatorsMother rollPaper weightEfficiencyTotal powerFootprint (L×W×H)
GP-AR1100-WPSemi-automatic1W1100 mm, OD 1270 mm40–120 gsm32 s/cycle (80 m)15 kW—
GP-FA650-WPFully automaticNo dedicated operatorW650 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)20 kW8150 × 5980 × 2100 mm
GP-FA1100-WPFully automaticNo dedicated operatorW1100 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)25 kW8600 × 5980 × 2100 mm
GP-FA1500-WPFully automaticNo dedicated operatorW1500 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)50 kW9200 × 5900 × 1920 mm
GP-EA1100-WPFully automaticNo dedicated operatorW1100 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)23 kW8600 × 5980 × 2100 mm
GP-FA650-WP-2CFully automaticNo dedicated operatorW650 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)33 kW8150 × 6980 × 2100 mm
GP-FA1100-WP-2CFully automaticNo dedicated operatorW1100 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)39 kW14900 × 7580 × 2150 mm
GP-FA1100-WP-4CFully automaticNo dedicated operatorW1100 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)44 kW14900 × 8580 × 2150 mm
GP-FA1500-WP-2CFully automaticNo dedicated operatorW1500 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)45 kW—
GP-FA1500-WP-4CFully automaticNo dedicated operatorW1500 mm, OD 1270 mm40–120 gsm28 s/cycle (80 m)55 kW—

Standard functions

  • Unwinding
  • Tail marking
  • Slitting
  • Rewinding
  • Cutting
  • Glue spraying
  • Tail sealing
  • Core conveying
  • Core shaft conveying
  • Roll separation and end flattening
  • Roll pushing and counting
  • Conveying
  • Packaging

Optional functions

  • Printing
  • Drying
  • Turning
  • Paper shredding and waste removal
  • Web guiding
  • Accumulator
  • Shaftless unwinding
  • Servo tension control
  • Carton erecting and packing
  • Palletizing
Customers
Thermal paper roll converting plants
Applications
Slitting and converting of cash register and label rolls for supermarkets, logistics, warehousing and local delivery

How to choose your line

Answer these questions in your inquiry and our engineers will recommend a model and configuration.

  1. Tell us more about your company's products and services.
  2. Which machine width do you prefer for production: 650 mm, 1100 mm or 1500 mm?
  3. How many tons of cash register or POS rolls do you plan to convert per month on the new machine?
  4. Packaging style: POF transparent or black PE?
  5. Flexo printing: 1 color, 2 colors or more (max. 6 colors inline)?
Machine widthCapacity
650 mm160 tons/month
1100 mm260 tons/month
1500 mm360 tons/month

Machine capacity based on 80 mm × 80 m rolls, 48 g paper, no printing, 24 hours a day, 30 days a month.

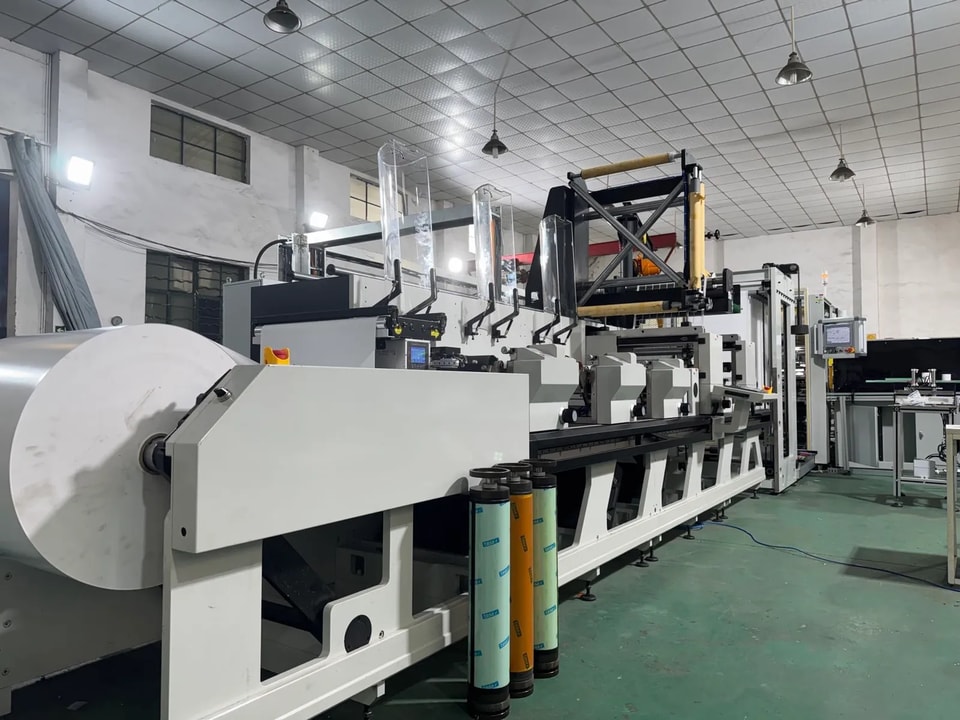

Inline printing unit on a GPPE thermal roll line

Why It Pays Off

Less Labor, Less Waste, Stable Output

  • Labor cost reduced by more than 80%Printing, slitting, winding, grouping and shrink packaging run as one automatic process.
  • Servo control systemSmooth operation that is easy for operators to learn.
  • Heavy jumbo rollsLoads jumbo rolls up to OD 1270 mm and 2 tons.
  • Less wastage and floor spaceOne integrated line replaces separate machines and manual transfer.

Preprinted Rolls

Added Value Your Customers Can See

Preprinted thermal rolls turn every receipt into a small advertising space for the retailers you supply.

Brand identity

Print a logo on the back or surface of the roll so customers recognize the brand.

Promotions

Print shop discount information to attract customers with offers.

Service information

Explain services or how to use the roll to reduce consumption.

Brand awareness

Spread the brand name with every printed receipt.

FAQ

Common Questions About POS Roll Lines

Can one line produce both core and coreless rolls?

Yes. The GPPE-Rollmaster coreless line produces 8–15 mm coreless rolls, and core rolls can be produced on the same line.

What paper weights can the lines handle?

The high-speed and preprinted POS roll lines handle thermal paper from 40 to 120 gsm; the coreless line handles 40 to 100 gsm.

How fast are the lines?

The high-speed line GP-FA1500-WP rewinds at up to 500 m/min with a 25-second cycle for 60 m rolls. The preprinted and coreless lines rewind at up to 300 m/min.

Can I print on the rolls?

Yes. Printing on the back of the roll (back printing) or on the face is done inline by flexo, with 1, 2 or more colors and up to 6 colors. The preprinted line GP-FA1100-WP-2C prints with registration accuracy of ±0.2 mm.

Can one line produce both POS receipt rolls and till rolls?

Yes. Till rolls are cash register rolls, the same product as POS receipt rolls. A GPPE POS line slits them to finished widths from 30 mm and rewinds them to finished diameters of 30–200 mm, on cores with ID 12–25.4 mm or coreless. See monthly capacity by machine width.

Are back printing, slitting and rewinding separate machines?

No. On a GPPE POS line, unwinding, slitting, rewinding, cutting, tail sealing, core and core-shaft loading, roll counting, conveying and packaging are standard functions of one line. Printing, including back printing, is an optional unit built into the same line.

Can the lines also convert bond (non-thermal) till rolls?

Yes. Besides thermal POS and cash register rolls, GPPE POS roll lines can slit and rewind non-thermal bond (offset paper) till rolls.

Request a Quote

Plan Your POS Roll Line

Send us the details below and our engineers will recommend a line configuration for your products and output.

Request a QuoteContact Us
  • Finished product: roll type and application
  • Material and paper weight (gsm)
  • Jumbo roll width, outer diameter and weight
  • Finished roll width, outer diameter and core ID (or coreless)
  • Printing needs: colors and print position
  • Target daily output
  • Packaging method
  • Destination country and power supply
