GPPE was founded in 2000 in Shanghai, China. As one of the leading manufacturers of paper printing and converting production lines and machinery, we have offered one-stop solutions to paper printing and converting factories for 26 years.
Our business scope includes automatic paper printing and converting production lines and machinery, fully automatic paper roll converting and packaging lines, fully automatic thermal roll (POS and ATM) printing and converting lines, fully automatic turret label converting lines and related machinery.
Bluetooth printer label rolls
Blue Tooth Printer Label Roll Production Line
A production line for the label rolls used in Bluetooth and handheld label printers.
View details.webp)
Turret rewinding
Fully Automatic Turret Label Converting
The turret slitter rewinder is equipped with an automatic core loading system and runs non-stop rewinding with printing, die-cutting and pile waste collection, all in one line.
View details
Small core · GPPE-Rollmaster
Fully Automatic Small Core Label Roll Converting Line
As handheld printers become more popular, the market for small-core label rolls is growing rapidly.
View details
Bluetooth printer label rolls
Blue Tooth Printer Label Roll Production Line
A production line for the label rolls used in Bluetooth and handheld label printers. The turret slitter rewinder loads cores automatically and combines non-stop rewinding, printing, die-cutting and pile waste collection in one line.
- High efficiency15 seconds per cycle for 25 m rolls.
- Cutting at the label gapCutting accuracy of ±1 mm keeps each label intact.
- Label tail closureEach roll tail is closed with a label.
- Special glue designThe label end peels easily from the core without leaving glue on the label.
- Pile waste collectionNo need to stop the line to change waste rolls.
| Parameter | Standard configuration |
|---|---|
| Web width | 330 / 450 / 550 mm |
| Paper weight | 40–150 gsm |
| Slitting width | Min. 30 mm |
| Finished roll OD | 25–350 mm |
| Core ID | 25–76 mm (1 / 1.5 / 3 inch shafts) |
| Die-cut length | 9–19 inch |
| Production | 130 cycles/h (45 m rolls) |
| Packaging speed | Max. 30 packs/min |
| Rewinding speed | Max. 120 m/min |
| Cutting length accuracy | ±1 mm, cut at label gap |
Turret rewinding
Fully Automatic Turret Label Converting
The turret slitter rewinder is equipped with an automatic core loading system and runs non-stop rewinding with printing, die-cutting and pile waste collection, all in one line.
- Automatic core loadingCores are fed and loaded automatically for non-stop rewinding.
- Quick-change air shafts1, 1.5 and 3 inch quick-disassembling air shafts; the machine adjusts automatically when the shaft size changes.
- Cutting at the label gapCutting accuracy of ±1 mm keeps each label intact.
- Pile waste collectionNo need to stop the line to change waste rolls.
| Parameter | Standard configuration |
|---|---|
| Web width | 330 / 450 / 550 mm |
| Paper weight | 40–150 gsm |
| Slitting width | Min. 30 mm |
| Finished roll OD | 25–350 mm |
| Core ID | 25–76 mm (1 / 1.5 / 3 inch shafts) |
| Die-cut length | 9–19 inch |
| Production | 130 cycles/h (45 m rolls) |
| Packaging speed | Max. 30 packs/min |
| Rewinding speed | Max. 120 m/min |
| Cutting length accuracy | ±1 mm, cut at label gap |
Small core · GPPE-Rollmaster
Fully Automatic Small Core Label Roll Converting Line
As handheld printers become more popular, the market for small-core label rolls is growing rapidly. This line produces 0.5–1 inch small-core label rolls with built-in die-cutting, waste collection, slitter rewinder, core loader, core shaft loading, tail label closure, grouping and shrink packaging.
- Labor cost reduced by more than 80%
- High efficiency25 seconds per cycle for 40 m label rolls.
- Large jumbo rollsUnwinder for jumbo rolls up to OD 1270 mm.
- Precise cutting length±1 mm, keeping each label intact.
- Servo control systemEasy and friendly for operators.
| Parameter | Standard configuration |
|---|---|
| Web width | 330 / 450 / 550 mm |
| Paper weight | 40–100 gsm |
| Slitting width | Min. 30 mm |
| Finished roll OD | 30–150 mm |
| Core ID | 12–25.4 mm (0.5–1 inch) |
| Die-cut length | 12–26 inch |
| Production | 13 s/cycle (10 m rolls) |
| Packaging speed | Max. 15 packs/min |
| Rewinding speed | Max. 300 m/min |
| Cutting length accuracy | ±1 mm |
Inside GPPE

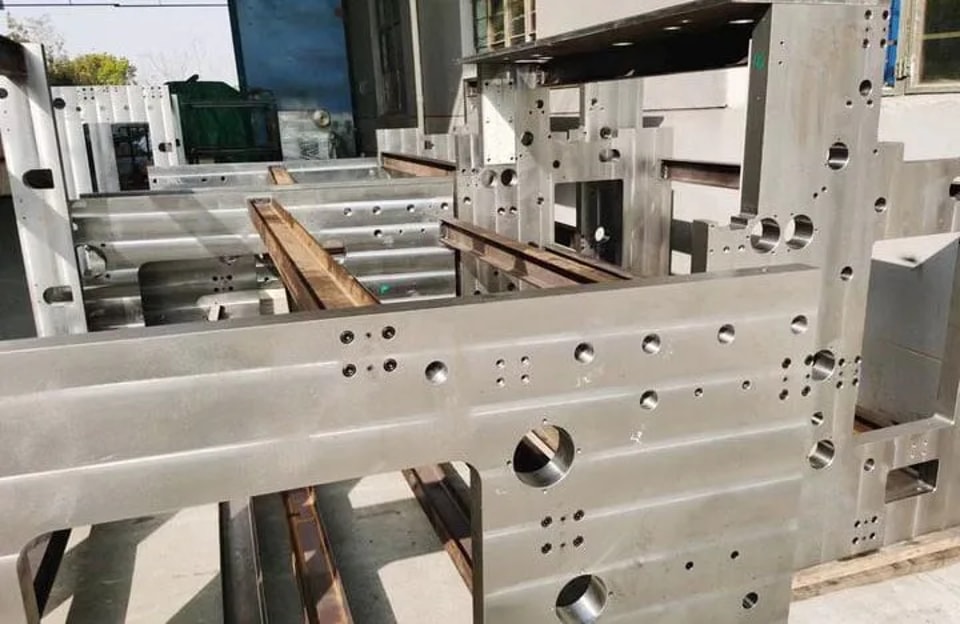

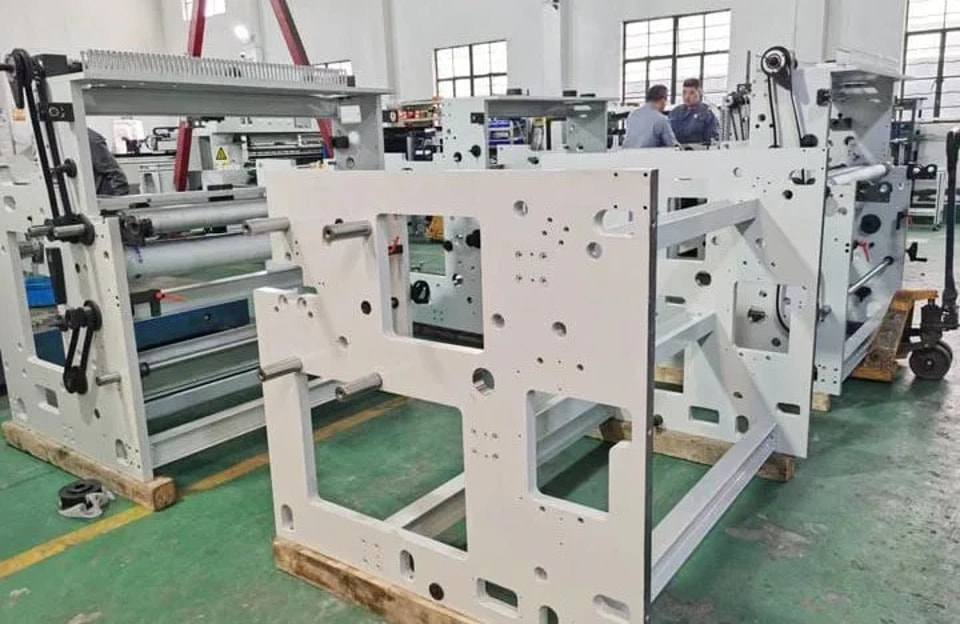

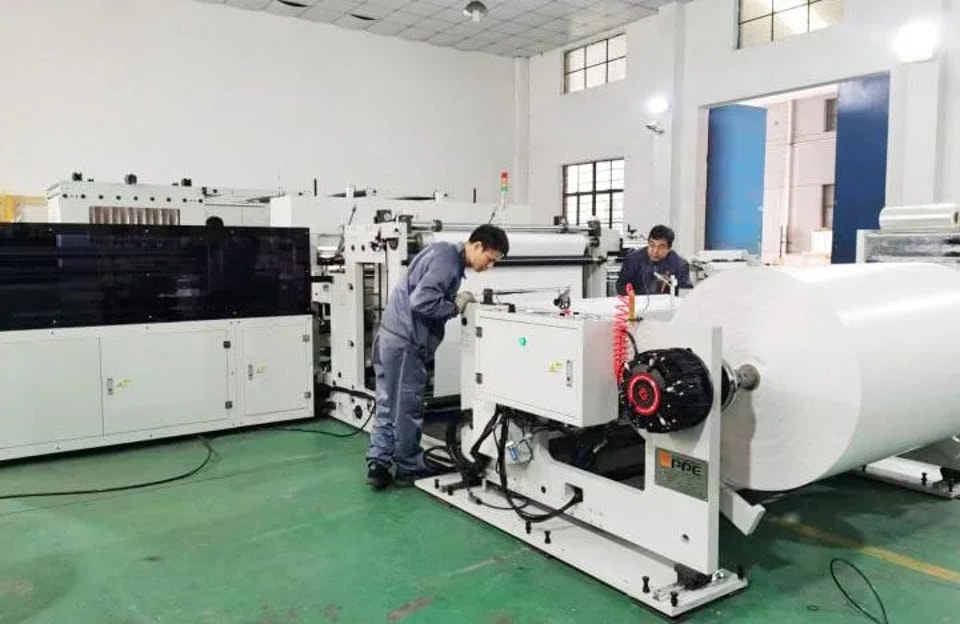

Factory Tour
Our People
Team Picture
About GPPE
About Us
Shanghai Guangping Printing Equipment Co., Ltd. (GPPE) was founded in 2000 in Shanghai, China, by Grace He. For 26 years we have designed and manufactured fully automatic printing, slitting, converting and packaging lines for paper printing and converting factories.
About 98% of our equipment is exported, to customers in more than 50 countries and regions.
Learn more
Service
Services We Provide
We also have professional quality testing workers and equipment to test the quality of our products to guarantee exceptional professional results.
Free installation
We provide complete installation and training in your factory by our experienced and skilled engineers.
Professional warranty
12-month free warranty, backed by our experienced mechanical design engineers.
24-hour online support
Our online service keeps your machines working, with no need to worry about communication problems.
After-Sales Network
Our After-Sales Service Teams
GPPE sells and services lines in France, Russia, Indonesia, Malaysia, Turkey, the USA, Brazil, Italy and Australia. Overseas service points are in Italy, Germany, France, Russia, Turkey, Brazil and Malaysia.
France
Russia
Indonesia
Malaysia
Turkey
USA
Brazil
Italy
Australia
Quality & Patents
Certificate
ISO 9001 and CE certified, with more than 60 national invention and utility model patents.
ISO 9001:2015 quality management system certificate
CE certificate, Machinery Directive 2006/42/EC
Invention patent: automatic printing small roll slitting machine
Invention patent: automatic core threading and shaft extraction device
Invention patent: small roll tail closing device for slitting machines
Invention patent: small roll tail sealing device for slitting machinesInquiry
Contact Us
Tell us about your project: the rolls you want to produce, material and paper weight, jumbo and finished roll sizes, and your target output. Our engineers will reply with a suggested line configuration as soon as possible.
