Project Overview
High-Speed Thermal Paper Roll Slitting & Packaging Line
High-speed thermal paper roll slitting and packaging line with a maximum speed of 500 m/min and a production cycle of 26 seconds for 70 m rolls.
Equipment Functions
- Printing
- Slitting
- Rewinding
- Core conveying
- Core shaft conveying
- Roll separation and end flattening
- POF heat shrink packaging
Project Summary
Italy: High-Speed Thermal Paper Roll Slitting & Packaging Line

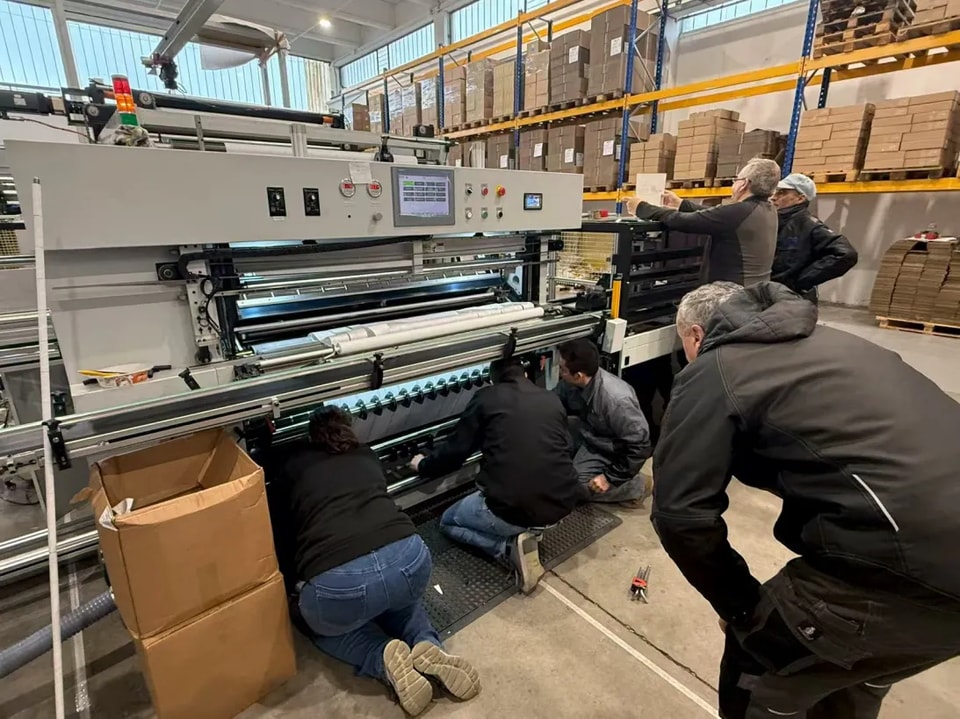

In 2025, GPPE supplied a High-Speed Thermal Paper Roll Slitting & Packaging Line (model GP-FA1450-4C) to a customer in Italy. It has a maximum speed of 500 m/min and a production cycle of 26 seconds for 70 m rolls.
How the Line Works
- Printing
Inline flexo printing for preprinted rolls.
- Slitting
The servo-controlled slitter rewinder slits the jumbo roll into finished widths.
- Rewinding
Finished rolls are rewound by the servo-controlled slitter rewinder.
- Core conveying
Cores are loaded automatically.
- Core shaft conveying
Core shafts are loaded automatically.
- Roll separation and end flattening
- POF heat shrink packaging
Finished rolls are grouped and packed in POF shrink film, ready for cartons.
Current Model Reference
The 1450 mm machine width has since been upgraded to 1500 mm. The current models in this family are:
| Model | Automation | Mother roll | Paper weight | Efficiency | Total power |
|---|---|---|---|---|---|
| GP-FA1500-WP | Fully automatic | W1500 mm, OD 1270 mm | 40–120 gsm | 28 s/cycle (80 m) | 50 kW |
| GP-FA1500-WP-2C | Fully automatic | W1500 mm, OD 1270 mm | 40–120 gsm | 28 s/cycle (80 m) | 45 kW |
| GP-FA1500-WP-4C | Fully automatic | W1500 mm, OD 1270 mm | 40–120 gsm | 28 s/cycle (80 m) | 55 kW |
Planning a Similar Line
GPPE pos & thermal paper roll lines are built for thermal paper roll converting plants: slitting and converting of cash register and label rolls for supermarkets, logistics, warehousing and local delivery. To configure a line like this one, GPPE engineers ask:
- Which machine width do you prefer for production: 650 mm, 1100 mm or 1500 mm?
- How many tons of cash register or POS rolls do you plan to convert per month on the new machine?
- Packaging style: POF transparent or black PE?
- Flexo printing: 1 color, 2 colors or more (max. 6 colors inline)?
Send your answers and the engineers will suggest a configuration.
Questions About This Project
What line did GPPE supply in Italy in 2025?
In 2025, GPPE supplied a High-Speed Thermal Paper Roll Slitting & Packaging Line (model GP-FA1450-4C) to a customer in Italy. It has a maximum speed of 500 m/min and a production cycle of 26 seconds for 70 m rolls.
Which functions does the GP-FA1450-4C line in Italy include?
The line includes printing, slitting, rewinding, core conveying, core shaft conveying, roll separation and end flattening and POF heat shrink packaging.
What is the speed of this line?
Max. 500 m/min.
Is the GP-FA1450 still available?
The 1450 mm width has been upgraded to 1500 mm. The current models are GP-FA1500-WP, GP-FA1500-WP-2C, GP-FA1500-WP-4C, with mother rolls up to 1500 mm wide and 40–120 gsm paper.
